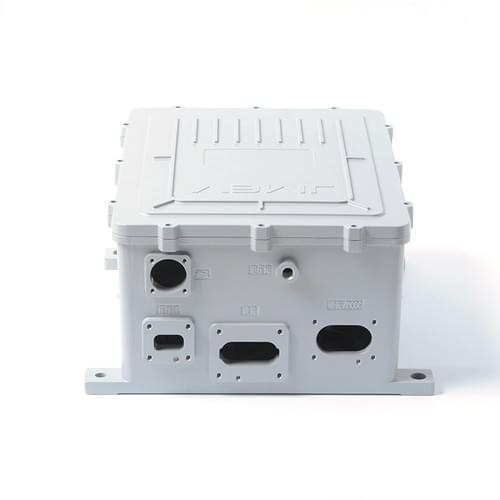

New energy auto parts connecter box die casting mould

The process of die casting mould manufacturing starts with developing a nice design. If you only have samples or ideas,and don’t have a ready design, our highly qualified and experienced engineers will help you perform a complete analysis of your products. They will offer you a DFM (design for manufacturing) report as a pre-analytical design and then, according to your further requirements, finalize the die casting mould design.

Design process:

1. Analyze the process of the product according to the material category, shape and accuracy of the product, and formulate the process.

2. Determine the position of products in the mold cavity, and analyze and design the parting surface, overflow drainage system and gating system.

3. Design the core assembly mode and fixation mode of each activity.

4. Design of core pulling distance and force.

5. Design of ejection mechanism.

6. Determine the die casting machine, design the die base and cooling system.

7. Check the relevant dimensions of mold and die casting machine, and draw the process drawing of mold and various parts.

8. Design completed.

As a professional mould supplier, we have made lots of aluminum alloy die casting moulds. Mature mould design of aluminum alloy die casting mould. According to the products. we can give you best solution for your die casting production.

If you have any project need Die Casting Machine and Mould for aluminum alloy solution,please feel free to contact us. We will offer you best solution for your aluminum alloy production.
